By merging structure and optics, the proposal transposes the environmental characteristics of the river surface onto the bridge surface.

Images

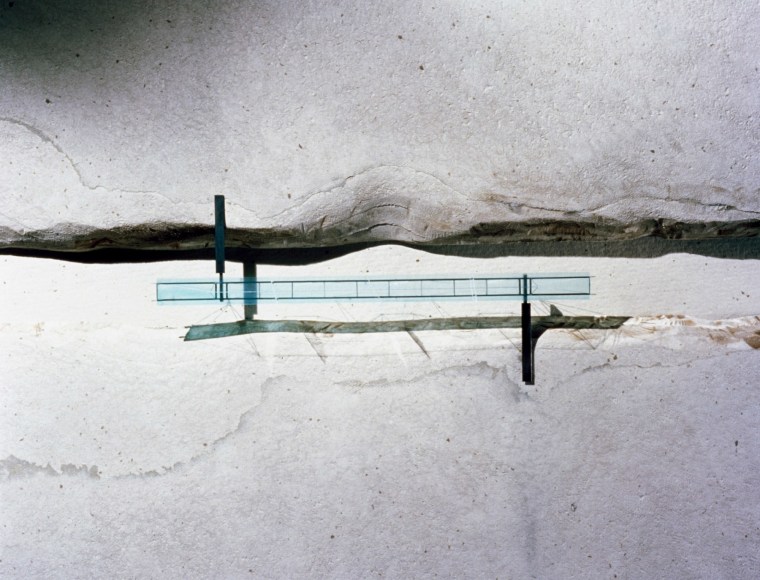

MODEL SEEN IN PLAN VIEW

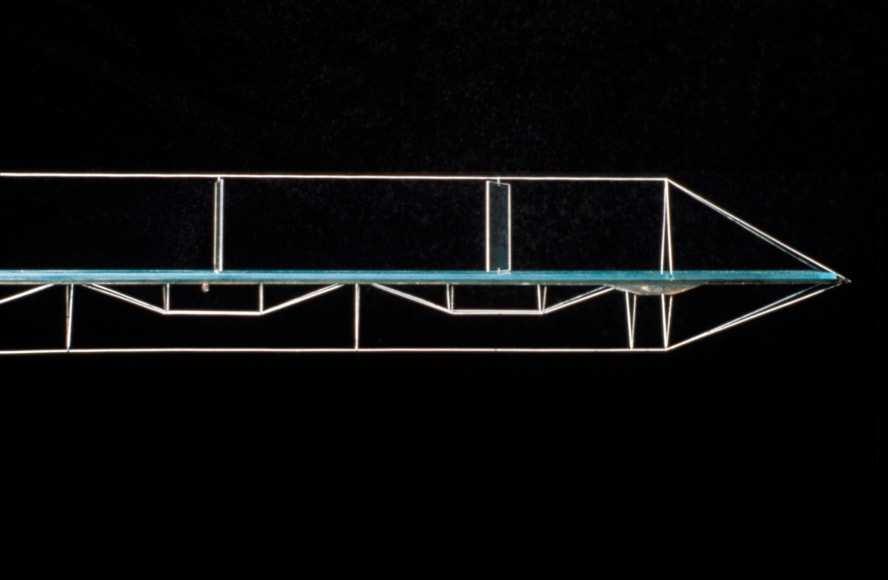

MODEL OF BRIDGE STRUCTURE SEEN IN ELEVATION

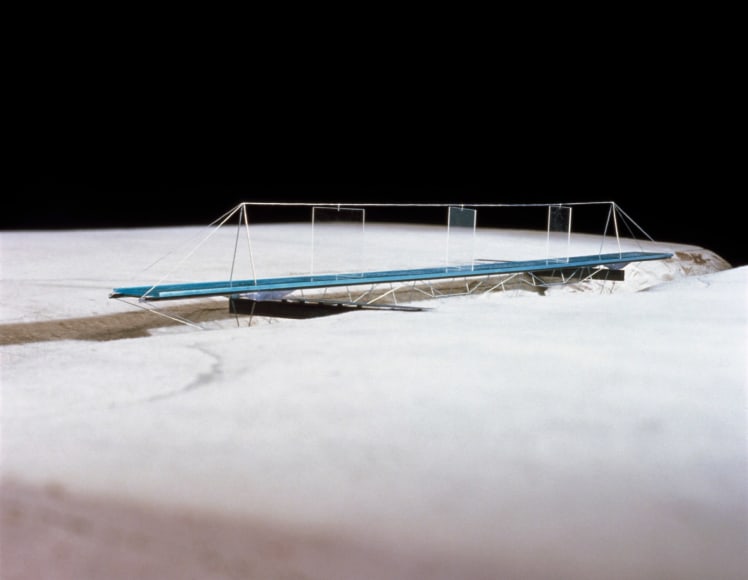

VIEW OF MODEL

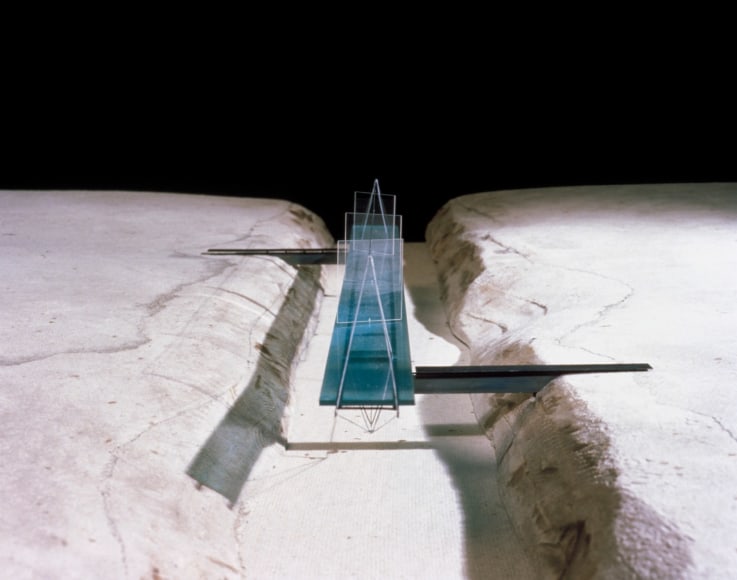

MODEL ILLUSTRATES BRIDGE'S RADICAL STRUCTURE AND ALIGNMENT WITH THE RIVER

Description

Pushing the limits of bridge design and demonstrating the potential of glass as a structural material, the Luminous Glass Bridge guides the pedestrians along (or against) the river’s current. The sun hitting the surface of the water reflects the surface of the moving water up onto the underside of the translucent glass projection surface which doubles as the bridge deck. This glass deck, a series of post-tensioned glass planks, is supported at each end by two abutments cantilevered from opposite shores approximately 80 feet from each other.

Proceeding out along the abutment, the pedestrian is re-oriented to travel with the river, walking upon its projected image. Positioned along the length of the bridge are three reflective panels of glass that also serve as an integral part of the bridge structure. These panels pivot as one moves along the platform, layering views and light effects that further elucidate the interaction of light, environment and observation.

Client: Private
Engineer: Ove Arup & Partners
